Corresponding instructions:
Applicable to high temperature and high pressure and strong corrosion conditions, the maximum working temperature is 760 degrees Celsius, and the highest working medium pressure is 400Mpa. Leakage rate can reach 1*10-10CM3/S
specific contents:

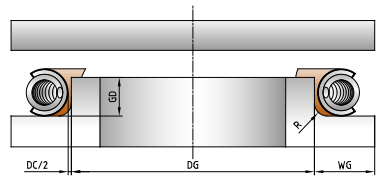

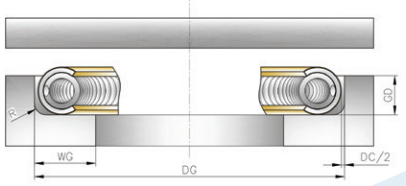

A Assembly drawing
B Assembly drawing
![T2U`ZZGS@D9(_))H4$_]LJS.png](/upload/201907/25/201907251355008758.png "T2U`ZZGS@D9(_))H4$_]LJS.png")
![$M0CS~YM5VE10UIF]UCN_8H.png](/upload/201907/25/201907251355096415.png "$M0CS~YM5VE10UIF]UCN_8H.png")
Due to the special cross-section of the metal C-ring, it has excellent self-sealing properties. The built-in spring element increases its sealing performance and is often used in demanding sealing applications. We can provide products with round, rectangular and other complex shapes, which can be customized according to customer requirements.
Working conditions:
Working pressure range: vacuum --- 400MPA
Operating temperature range: -200 ° C - 760 ° C
Typical leak rate: 1*10-10CM3/S
Optional metal material:
SUS321 stainless steel
SUS316L stainless steel
Inconel (718)
Inconel (750)
Optional plating:
silver (AG), tin (Sn), nickel (Ni), gold (Au), polytetrafluoroethylene (F4) and so on.
See the relevant groove size for details--"Website Download"
